A seismic retrofit strengthens selected parts of an existing building so it can better resist earthquake forces and reduce the risk of severe structural damage. Depending on the property, the work may improve foundations, connections, walls, frames, diaphragms, or other parts of the lateral-force-resisting system. Retrofitting can improve expected performance, but it does not make a building earthquake-proof.

Los Angeles requires evaluation and, where necessary, strengthening of certain qualifying buildings under its mandatory retrofit programs. Applicability depends on the structural system, construction history, City records, and any property-specific Order to Comply—not age or appearance alone. Compliance periods are generally measured from service of the applicable Order rather than from one citywide deadline.

This guide explains the building types involved, the compliance process, common strengthening methods, tenant and construction considerations, and the main cost factors. Where appropriate to the agreed scope, M-Cubed Design & Building can help coordinate pre-construction planning, constructability, permitting documentation, and construction considerations with the licensed structural engineer and other responsible professionals.

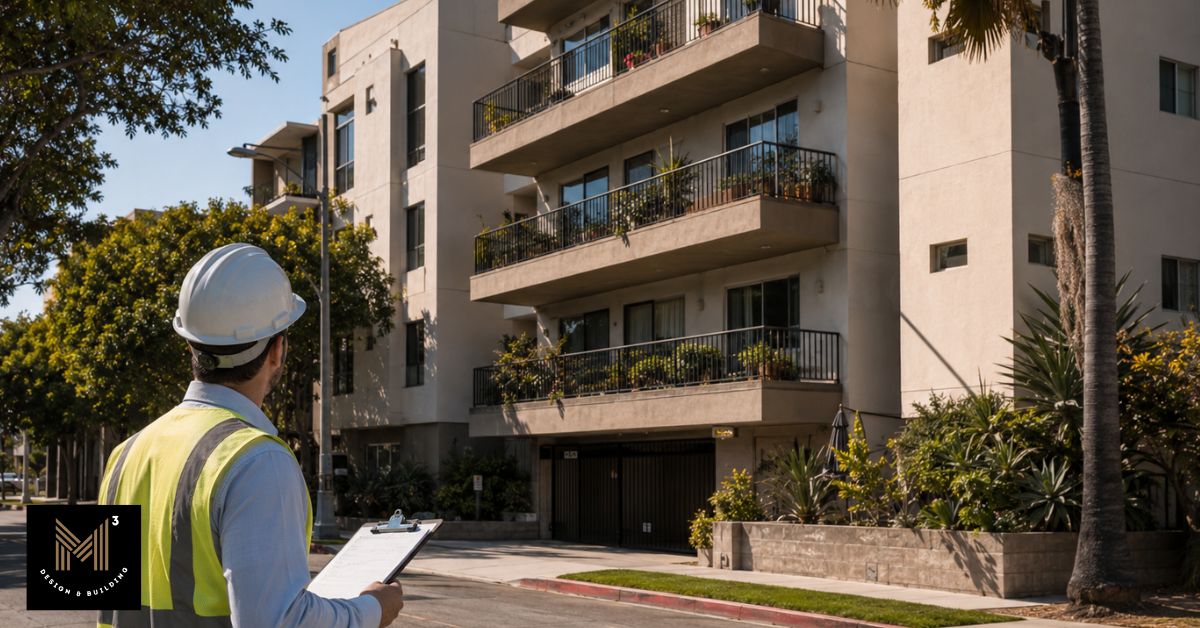

Understanding Los Angeles Seismic Retrofit Orders

Once LADBS serves an Order to Comply, the property enters a formal seismic-compliance process with defined response options and property-specific timing. The Order reflects the City’s program determination, but it is not a completed structural evaluation.

What is a mandatory seismic retrofit order?

A mandatory seismic retrofit Order is a written LADBS notice stating that a property has been identified within an applicable City program. For a Division 93 building, the Order identifies the program requirements, compliance options, and deadlines measured from its service date. The owner may appeal LADBS’s initial program determination to the Board of Building and Safety Commissioners within 60 days after service.

The Order does not establish every existing structural condition or complete the required engineering analysis. Depending on the property record and selected compliance path, the owner may need to submit proof of prior compliance, an analysis showing that the building meets the required standard, retrofit plans, or demolition plans. Permit review, construction, inspection, and closeout follow separately where required.

Why Los Angeles Adopted the Mandatory Retrofit Framework

During earthquake shaking, a ground floor with limited lateral resistance may experience substantially greater sideways movement than the more enclosed stories above. Concentrated story drift can damage columns, walls, connections, and other load-supporting elements, increasing the risk of severe deformation or structural failure.

Division 93 reflects lessons from the poor performance of multistory wood-frame buildings with tuck-under parking during the 1994 Northridge earthquake. It establishes minimum requirements for qualifying soft, weak, and open-front conditions. Division 95 addresses qualifying non-ductile concrete buildings through a separate evaluation and compliance framework.

Ordinance 183893 and 184081 form part of the legislative history of these programs. The current operative requirements are found in Division 93 for qualifying wood-frame soft, weak, or open-front buildings and Division 95 for qualifying non-ductile concrete buildings. Ordinance 184081 amended the Division 93 compliance periods now reflected in the current code.

What happens when an owner does not comply?

An unresolved Order can remain part of the property record. When LADBS serves a Division 93 Order, it records a certificate stating that the building falls within the program and has been ordered to be analyzed and, if necessary, altered or demolished. LADBS later records a terminating certificate when the qualifying condition has been resolved. The recorded status is not a lien.

Continued noncompliance may lead to administrative enforcement or prosecution under the applicable Los Angeles Municipal Code provisions. Division 93 also contains misdemeanor-enforcement language, but its penalty provision does not apply where qualifying work is proceeding within the statutory periods, an approved extension, or applicable Department or Board action.

A transfer of ownership does not restart the compliance clock. A purchaser, HOA, or asset manager therefore needs to review the existing Order and prior submissions rather than assume new deadlines begin at closing. Owners should confirm the current LADBS record, compliance status, and remaining requirements before selecting a response path.

The Core Vulnerabilities: Why Specific Existing Buildings Are Targeted

Seismic vulnerability depends on the structural system, connections, materials, alterations, and applicable evaluation criteria—not age or exterior appearance alone. The Los Angeles programs discussed here specifically address qualifying soft-story wood-frame and non-ductile concrete buildings. URM and rigid-wall flexible-diaphragm concerns may be governed by other codes, earlier programs, voluntary evaluation, or property-specific requirements rather than Divisions 93 or 95.

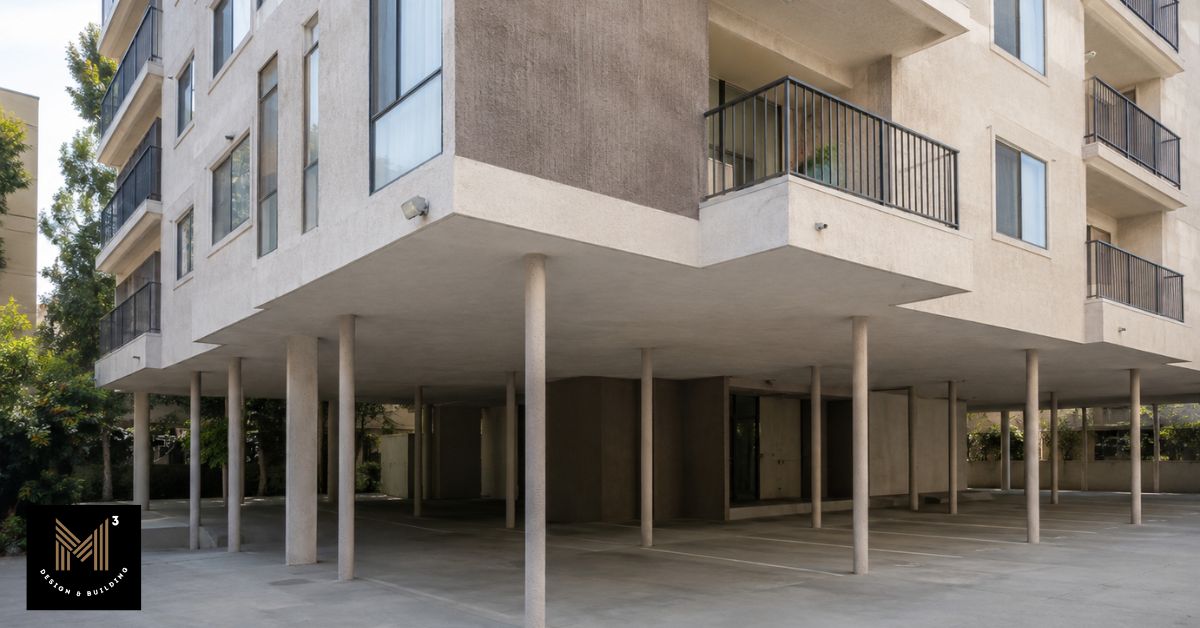

Wood-Frame Soft-Story Structures

Tuck-under parking, drive aisles, storefronts, and other large ground-floor openings can leave fewer walls or frames to resist earthquake forces than the stories above. The resulting change in stiffness may concentrate story drift at the open level, placing high demands on columns, remaining walls, and connections.

The parking use itself is not the problem. The concern is a weak, soft, or discontinuous lateral-force-resisting system that may experience severe deformation, permanent leaning, or partial or complete failure during strong shaking.

Non-Ductile Concrete Buildings

“Non-ductile” describes reinforced-concrete construction with limited ability to deform repeatedly during earthquake loading without losing substantial strength. Older detailing may include inadequate column confinement, weak beam-column joints, or discontinuous reinforcement.

These conditions can produce brittle shear or connection failures rather than the controlled deformation expected in modern seismic design. A rapid loss of strength may also compromise gravity-load support. “Older concrete” and “non-ductile concrete” are not interchangeable classifications; the determination requires review of the structural system, reinforcement, materials, alterations, and applicable criteria.

Unreinforced Masonry (URM) Buildings

Unreinforced masonry walls can support significant vertical loads but have limited tensile capacity and little ability to deform during repeated earthquake cycles. Strong shaking may crack mortar joints or separate inadequately connected walls, roofs, floors, and parapets.

Exterior walls may move out of plane, and parapets, façades, chimneys, or wall sections may become falling hazards. Not every brick or historic building is URM; reinforced masonry, framed construction, strengthening work, and non-load-bearing veneer may appear similar externally.

Rigid-Wall Flexible-Diaphragm (RWFD) Buildings

Common in some older warehouses and industrial buildings, these structures combine comparatively rigid concrete or masonry walls with a lighter, more flexible wood-framed roof diaphragm.

During shaking, diaphragm movement can place high demands on roof sheathing, framing, chords, collectors, and wall anchors. Inadequate force-transfer connections may allow the roof and walls to separate, destabilizing wall panels or reducing roof support. FEMA identifies these roof-to-wall and diaphragm force-transfer issues as central concerns in rigid-wall flexible-diaphragm buildings.

Mandatory Seismic Retrofit Deadlines and Compliance Timelines

Los Angeles seismic-retrofit programs do not establish one universal calendar deadline for every covered property. The applicable compliance periods run from service of the property-specific Order to Comply, so two buildings within the same program may have different due dates. The original service date and current LADBS record are the starting points for determining what remains outstanding.

Soft-Story Buildings: Confirming the Property-Specific Compliance Status

Division 93 measures compliance from service of the original Order to Comply:

• Within two years: Submit a structural analysis and plans showing that the existing building meets the required standard, a structural analysis and plans for a proposed alteration, or plans for demolition.
• Within three-and-one-half years: Obtain all permits required for the retrofit or demolition.
• Within seven years: Complete the required construction or demolition work under all necessary permits.

A transfer of ownership does not restart these periods; the compliance dates remain tied to service of the original Order.

To establish the property’s current status, review the original Order, its service date, prior submissions, issued permits, and any approved extension. A missed statutory milestone does not by itself show what enforcement action has occurred or whether an accepted compliance route remains active.

Non-Ductile Concrete Buildings: The 3-, 10-, and 25-Year Framework

Division 95 establishes a separate non-ductile concrete retrofit timeline. Its periods also run from service of the original Order rather than from a single citywide date:

• Within three years: Submit the LADBS checklist for Department review and approval.
• Within ten years: Submit one of the compliance documents permitted by Division 95, such as approved proof of a qualifying prior retrofit, a structural analysis showing that the existing building meets the applicable engineering requirements, retrofit plans and supporting analysis, or demolition plans.
• Within 25 years: Complete all required retrofit or demolition work.

The ten-year requirement follows an LADBS determination that the building is non-ductile concrete, and transfer of title does not change the original compliance dates. These periods describe an Order-based statutory framework, not a single citywide construction deadline.

The property’s Division 95 status, original Order date, prior submissions, and current LADBS record should be reviewed before calculating any remaining deadline.

West Hollywood, Beverly Hills, and Santa Monica Follow Separate Timelines

Properties in West Hollywood, Beverly Hills, and Santa Monica are governed by separate municipal retrofit programs, notices, screening requirements, and compliance periods. Los Angeles Division 93 and Division 95 deadlines do not apply outside the City of Los Angeles. Owners should confirm the governing jurisdiction, property-specific notice, current program status, and applicable municipal requirements before relying on any general timeline.

The Step-by-Step Seismic Retrofit Process

Moving from an identified structural concern to completed retrofit work requires several distinct milestones. Building classification, engineering design, plan check, housing requirements, permit issuance, construction, inspections, and program closeout may overlap, but each produces a different approval or deliverable.

Phase	Main Purpose
Phase 1	Confirm the Building’s Status and Existing Conditions
Phase 2	Develop the Structural Retrofit Design
Phase 3	Complete Plan Check and Obtain Required Permits
Phase 4	Address Applicable Tenant Habitability and Housing Requirements
Phase 5	Perform the Approved Retrofit Work
Phase 6	Complete Inspections, Documentation, and Program Closeout

Phase 1: Confirm the Building’s Status and Existing Conditions

The first task is to compare the official property record with the building as it exists today. Any Order to Comply or municipal notice, permit history, available original drawings, prior structural work, and apparent structural system establish the regulatory and technical starting point. Access, parking, occupancy, utilities, and other visible site conditions may then affect how the evaluation and potential construction are approached.

Not every question can be answered from existing documents. Concealed structural connections, reinforcement, foundations, undocumented alterations, or material conditions may require additional investigation before the engineering scope can be defined.

The primary outcome is a defined next-step scope based on the available records, visible conditions, and any further investigation identified by the responsible professionals. Early review can also identify broader site and planning questions before retrofit design advances. See the construction feasibility study guide for related early-stage planning considerations.

Phase 2: Develop the Structural Retrofit Design

Structural design begins by evaluating how earthquake forces travel through the existing building and where the load path may be weak or discontinuous. The engineer reviews expected drift, critical members and connections, diaphragm and frame or wall behavior, foundation demands where relevant, and the standard governing the retrofit.

Several technically acceptable solutions may be available, each affecting the property differently. For example, a structural frame that preserves more parking spaces may require larger foundations or more complex steel installation, while a wall-based solution could reduce available access or require more extensive finish restoration. Comparing those effects during design gives the owner an opportunity to select the approach before it is carried into permit documents and construction pricing.

The engineering phase typically produces the structural calculations, drawings, and supporting details required for the selected permit-submittal path.

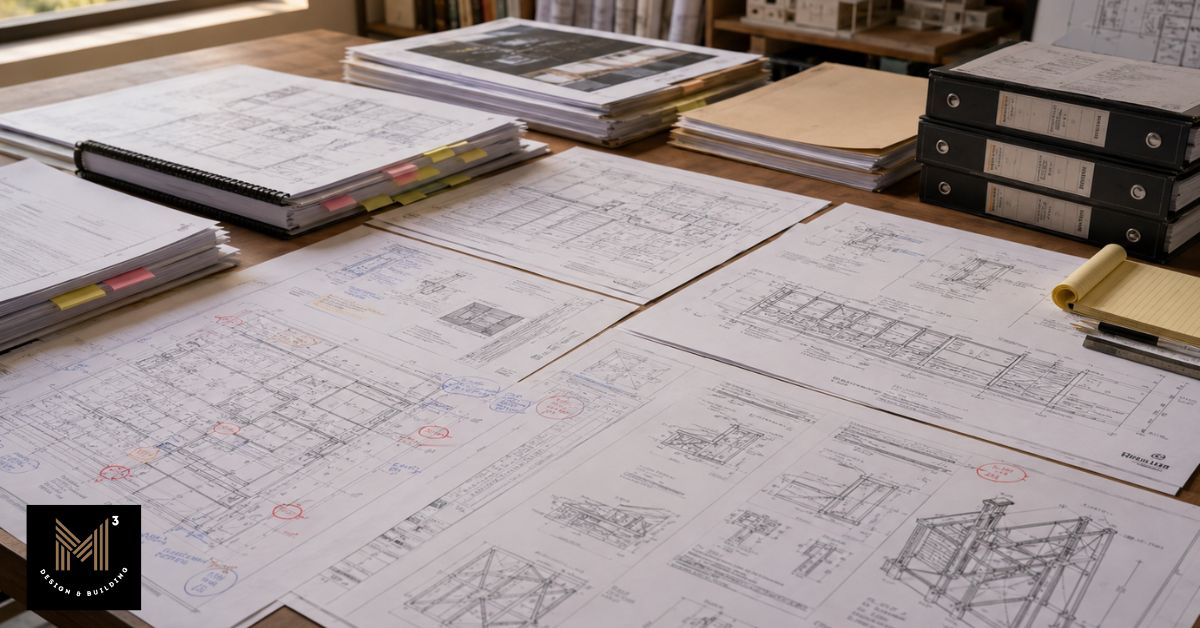

Phase 3: Complete Plan Check and Obtain the Required Permits

A completed engineering design is not an approved plan set or an issued building permit. During plan check, LADBS reviews the submitted drawings, calculations, and supporting information for compliance with the applicable retrofit and building-code requirements. Related architectural details, site conditions, reports, or agency clearances may also need to be resolved.

Plan-check comments may require clarification, additional calculations, revised details, or coordination with related disciplines before approval.

The sequence remains distinct:

Submitted plans → Plan-check review and corrections → Ready-to-Issue (RTI) status → Permit issuance

Where LADBS assigns Ready-to-Issue status, it generally indicates that identified plan-check requirements have been resolved. Construction may begin only after permit issuance and completion of any applicable pre-construction conditions.

Phase 4: Address Tenant Habitability and Housing Requirements Where Applicable

Occupied residential properties may require more than structural approval alone. For covered Los Angeles rental properties undergoing mandatory soft-story retrofit work, LAHD requires a Tenant Habitability Plan before construction proceeds through the applicable housing process. Applicability and tenant protections must be confirmed through the current LAHD process for the specific property and permitted scope.

Other renovation work may fall under the broader Tenant Habitability Program depending on the property and permitted scope.

Depending on the property and approved scope, the habitability review may address:

• Access to residential units and common areas during construction.
• Utility interruptions, parking or circulation changes, construction hours, noise, dust, and protective measures.
• Temporary or permanent relocation requirements where applicable, together with required tenant notices.

These housing requirements are separate from LADBS structural review, building permits, and any rent or cost-recovery provisions. The applicable housing requirements must be reflected in the construction sequence before mobilization.

Phase 5: Perform the Approved Retrofit Work

Construction begins after the required permits and applicable pre-construction requirements have been completed. Depending on the approved design, the work may include selective demolition, new or modified foundations, structural frames, shear walls, braces, anchors, diaphragm connections, utility protection, and restoration of affected finishes.

Sequencing must account for occupied units, parking or business operations, access, staging, active utilities, deliveries, temporary support, and required inspection points. If concealed conditions differ materially from the approved design assumptions, the responsible professionals may need to review the condition and obtain approval for revised work before construction continues in the affected area.

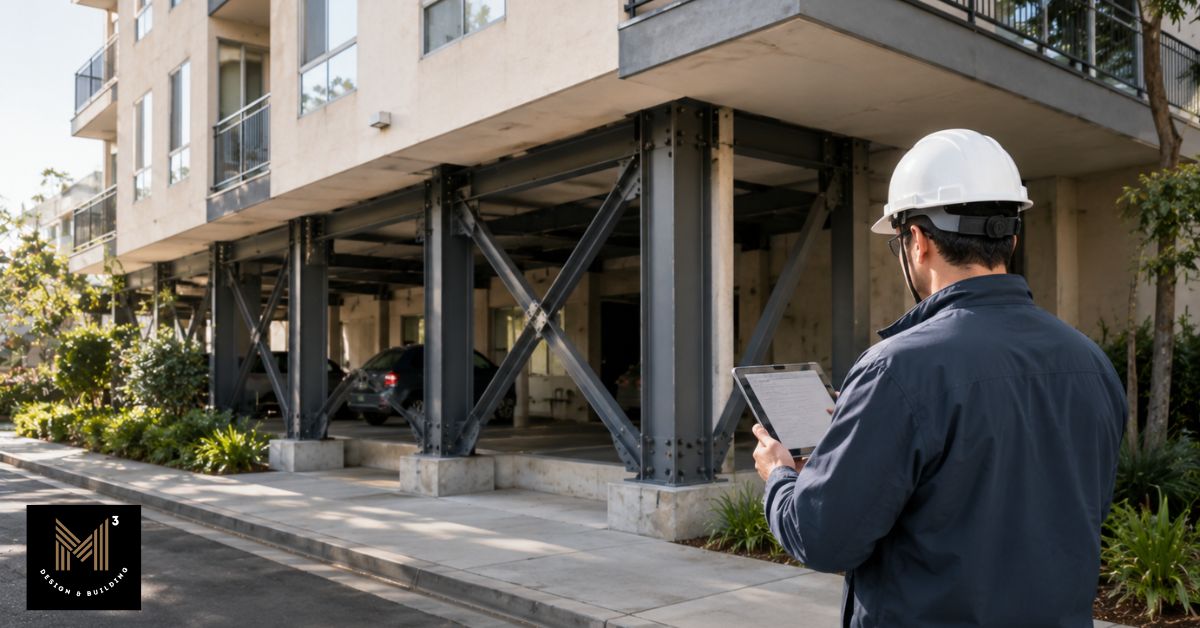

Phase 6: Complete Inspections, Documentation, and Program Closeout

Completing the physical retrofit does not by itself close the permit or remove the property’s recorded program status. Required inspections, testing, correction items, reports, and final approvals must also be completed.

Depending on the approved plans, closeout may involve LADBS inspections, special or deputy inspections, testing, design-professional observations, and documentation for structural welding, post-installed anchors, reinforcing steel, concrete placement, foundations, or other specified work.

LADBS publishes an Architect’s or Engineer’s Certificate of Compliance among its soft-story retrofit forms. The documents required on a particular project depend on the approved plans, inspection requirements, and Department process.

Under Division 93, LADBS files a certificate terminating the recorded program status when the building is demolished, found outside the Division’s scope, or determined through the required analysis or alterations to resist the applicable minimum seismic forces. Completing construction in the field does not alone terminate that recorded status.

Common Structural Retrofit Approaches

No single strengthening method applies to every building. The structural engineer selects and designs the system based on the identified weakness, existing load path, available space, foundations, architectural conditions, occupancy, and applicable retrofit criteria. The following are common approaches, not interchangeable standard solutions.

Cantilevered Steel Moment Frames

Steel moment frames resist lateral forces through engineered beam-column connections that permit controlled structural movement. They may be used in some open-front or tuck-under parking conditions where maintaining access and parking is an important design objective.

Preserving open space can require substantial foundations, complex steel connections, fabrication, installation access, and finish restoration. Those demands must be evaluated alongside the operational benefit of retaining a comparatively open ground floor.

Reinforced Concrete Shear Walls and Shotcrete

Reinforced concrete shear walls add stiffness and strength by creating a new path for transferring earthquake forces through the building. Shotcrete may be used as a concrete-placement method where conventional form-and-pour construction is less practical.

New walls can affect layouts, openings, access, usable space, foundation demands, and finishes. Their suitability depends on whether the required wall locations can be integrated into the property’s existing use.

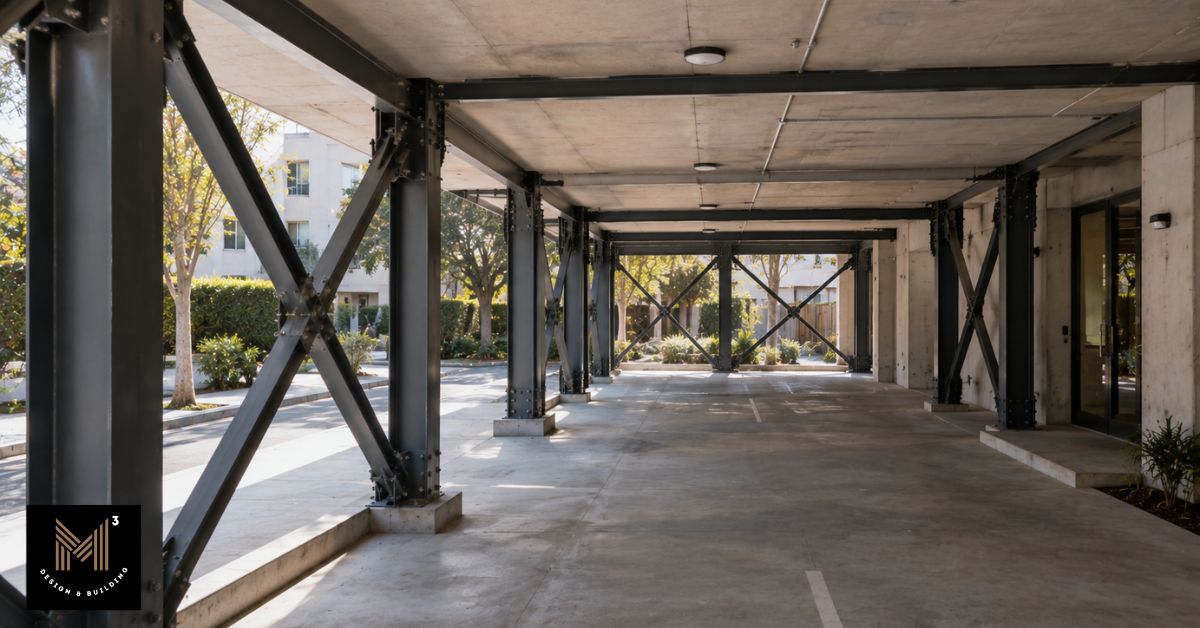

Steel Braced Frames

Steel braced frames use diagonal members to resist lateral forces and control building drift. They may provide an alternative where a shear wall or moment frame is not the preferred structural solution.

Braces can conflict with doors, windows, parking, tenant areas, equipment, or circulation. Their location must therefore be coordinated with both the structural load path and the building’s everyday operation.

Foundation Bolting and Cripple Wall Bracing

Foundation bolting strengthens the connection between wood framing and the supporting foundation. Cripple-wall bracing reinforces short framed wall sections between the foundation and the lowest occupied floor.

These measures apply to particular wood-frame configurations and are not a universal solution for older buildings. Existing framing, foundation conditions, wall height, and the building’s larger lateral-force-resisting system must be evaluated before they are specified.

Seismic Retrofit Cost Factors and Owner Budget Considerations

Retrofit budgeting extends beyond the visible structural installation. A retrofit budget should account for structural construction, professional services, permits, testing, inspections, access constraints, restoration, and operational impacts.

Estimating Hard Costs of Retrofit Construction

Hard costs depend primarily on the selected structural system, foundation work, access, utilities, occupancy constraints, and finish restoration.

Cost Driver	How It Can Affect Retrofit Cost
Structural Steel Fabrication and Installation	Steel quantity, connection complexity, fabrication requirements, and installation conditions can influence the scope of structural work.
Excavation, Foundation Modifications, and Site Access	Excavation depth, soil conditions, foundation design requirements, and access limitations can influence the amount of structural work required.
Utility Relocation or Protection	Existing electrical, plumbing, gas, or other building systems may require coordination or modification when they interfere with retrofit work.
Site Access and Construction Logistics	Occupied buildings, active parking areas, limited staging space, and operational requirements can affect how work is performed.
Finish Restoration	Repairing walls, ceilings, exterior finishes, parking surfaces, or other areas disturbed during construction adds to the overall scope.

Soft Costs: Engineering Fees, Permits, and Surveying

The total budget must also account for professional services, approvals, investigations, testing, and inspections.

Soft Cost Category	Examples
Structural design and documentation	Structural calculations, drawings, retrofit documentation, and engineering coordination required for the project.
Permitting and approvals	LADBS plan review, permit fees, required submissions, and related administrative requirements.
Testing and inspections	Special inspections, testing, and required reports based on the approved construction documents.
Professional coordination	Architectural coordination or other specialist services where required by the project scope.
Site investigations	Surveys, existing-condition verification, and geotechnical or material investigations where required by the design or reviewing authority.

Required services vary with the building type, available records, structural complexity, approved design, and agency requirements. The budget should therefore include both construction and the professional and administrative work needed to design, permit, inspect, and close out the retrofit.

Cost Recovery and Tenant Rent Adjustment Programs

Some Los Angeles property owners may evaluate whether applicable cost-recovery programs can offset part of the financial impact of seismic retrofit work. These programs operate separately from LADBS structural compliance requirements and follow their own eligibility rules, application procedures, documentation requirements, and tenant protections.

Under the current LAHD Seismic Retrofit Work Program, an eligible owner of a covered rent-stabilized property may apply for a temporary surcharge based on up to 50% of approved seismic retrofit costs. Current LAHD guidance identifies a maximum surcharge of $38 per month for a standard 120-month collection period, subject to approval, eligible-cost rules, tenant rights, and any applicable extension of the collection period. The surcharge does not become part of the tenant’s base rent.

Requirement	What Owners Should Confirm
Eligibility	Whether the property and specific retrofit costs qualify under current LAHD requirements.
Approval process	Required applications, supporting documentation, and administrative review procedures.
Tenant protections	Applicable notice requirements, habitability obligations, and tenant rights connected to the process.
Recovery limits	Up to 50% of approved eligible costs, subject to LAHD approval, a current monthly cap of $38, the applicable collection period, and tenant protections.

Cost recovery is not automatic. Eligible costs, approved amounts, and collection conditions depend on the applicable LAHD rules and the specific property circumstances. Owners should also keep separate the different roles of each agency: LADBS addresses structural compliance and permitting, while LAHD programs address housing-related requirements and allowable rent adjustments where applicable.

Current LAHD guidance also states that the cost-recovery application must be submitted within 12 months after completion of the retrofit work.

Insurance, Lending, and Transaction Considerations

A completed retrofit may be considered by insurers, lenders, buyers, or other transaction participants, but financial or underwriting outcomes are not automatic. Coverage, premiums, lending decisions, and market response remain subject to the policies, requirements, and judgment of the relevant insurer, lender, appraiser, broker, or buyer.

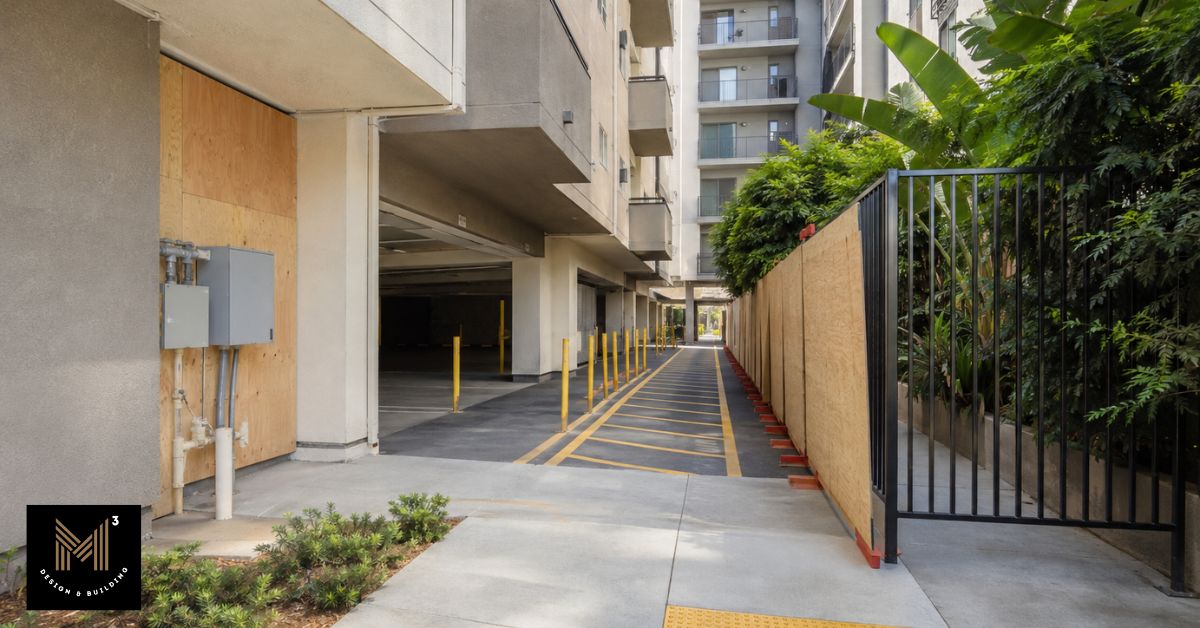

Coordinating Engineering and Construction for a Seismic Retrofit

A structurally valid retrofit must also be permit-ready and practical to construct within an occupied or operating property. Early coordination among the structural engineer, architect where required, contractor, inspectors, housing authorities, and owner helps identify how proposed systems affect foundations, access, parking, utilities, temporary work, tenants, business operations, and finish restoration.

Retrofit drawings, supporting calculations, architectural impacts, permit submissions, pricing assumptions, and construction logistics should continue to describe the same approved solution as the project develops. LADBS independently reviews and decides each permit application.

Value engineering should compare technically acceptable alternatives without reducing the structural performance required by the applicable code or approved design. Relevant comparisons may include foundation scope, installation access, parking loss, tenant pathways, commercial operations, fabrication complexity, sequencing, and restoration work.

For owners evaluating a Los Angeles retrofit, M-Cubed Design & Building can help review the construction, access, sequencing, and design-build considerations that should be coordinated with the licensed structural engineer, reviewing agencies, housing authorities, and other required professionals.

Sources:

1. ⁠City of Los Angeles Housing Department – The Seismic Retrofit Work Program
2. ⁠Los Angeles Municipal Code – Division 93: Existing Wood-Frame Buildings With Soft, Weak, or Open-Front Walls
3. ⁠Los Angeles Municipal Code – Division 95: Non-Ductile Concrete Buildings
4. ⁠Los Angeles Municipal Code §91.9504 – Compliance Requirements
5. ⁠Los Angeles Municipal Code §91.9510 – Violation and Penalty
6. ⁠Los Angeles Housing Department – Tenant Habitability Program
7. ⁠Los Angeles Municipal Code – Mandatory Earthquake Hazard Reduction in Existing Wood-Frame Buildings
8. ⁠Los Angeles Municipal Code §91.9306 – Administration
9. ⁠Los Angeles Municipal Code §91.9311 – Violation and Penalty
10. ⁠Federal Emergency Management Agency – Seismic Design of Rigid-Wall Flexible-Diaphragm Buildings
11. ⁠Federal Emergency Management Agency – Building Science Resource Library
12. ⁠City of West Hollywood – Seismic Retrofit Program
13. ⁠City of Beverly Hills – Seismic Retrofit Program
14. ⁠City of Santa Monica – How to Comply With the Seismic Retrofit Program
15. ⁠Los Angeles Department of Building and Safety – Soft-Story Retrofit Program
16. ⁠Los Angeles Department of Building and Safety – Non-Ductile Concrete Retrofit Program
17. ⁠City of Los Angeles – Ordinance No. 183893
18. ⁠City of Los Angeles – Ordinance No. 184081

A Small Lot Subdivision in Los Angeles is a development and subdivision process that can divide an eligible multifamily or commercial property into smaller, separately owned lots. In the traditional model, each lot is held in fee-simple ownership, so the buyer owns the home and the land beneath it rather than purchasing a condominium interest in shared property.

Shared driveways, access, utilities, landscaping, trash areas, and other common elements may still be governed through recorded easements, covenants, or maintenance agreements. Fee-simple ownership therefore reduces reliance on a traditional condominium structure but does not eliminate shared obligations.

California’s Starter Home Revitalization Act provides a separate approval pathway for certain qualifying developments of up to 10 lots and 10 homes. Because SHRA follows different zoning, eligibility, dimensional, and review rules, it should not be treated as interchangeable with the traditional Los Angeles Small Lot Ordinance or an SB 9 Urban Lot Split.

For owners and developers, the central question is not how many lots appear possible on paper, but how many homes remain workable after access, fire requirements, utilities, setbacks, easements, grading, drainage, and construction staging are considered together. M-Cubed Design & Building evaluates those factors through an owner-led design-build process connecting feasibility, architecture, engineering, permitting coordination, and construction.

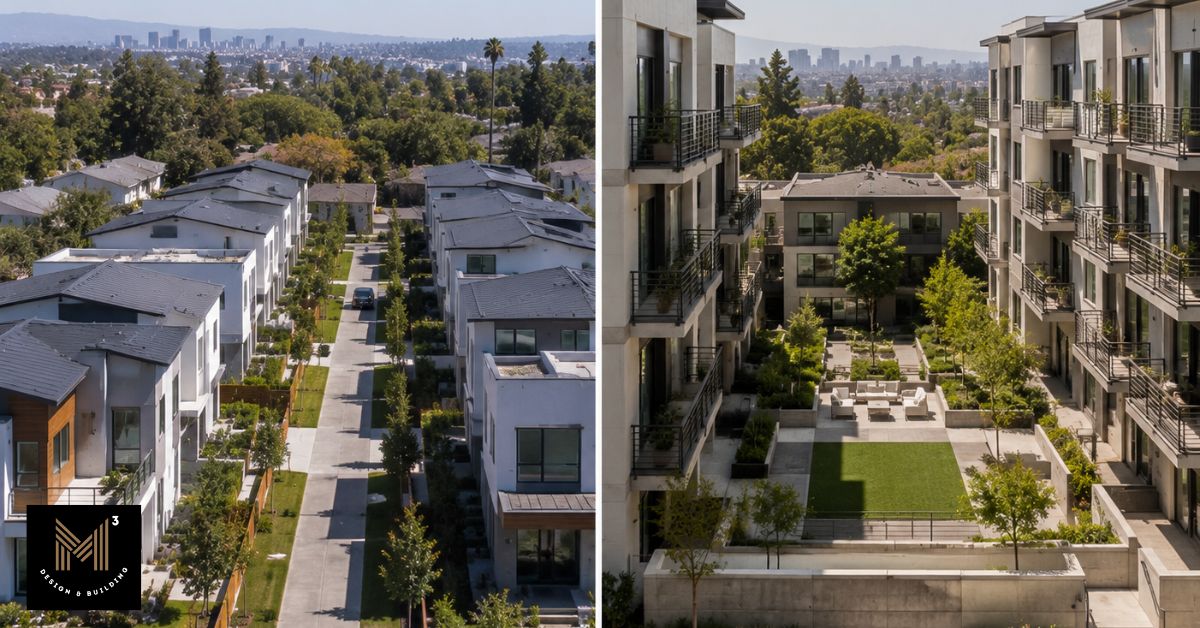

The Core Concept: Fee-Simple Ownership vs. Condominiums

When owners compare Small Lot development with condominiums, the real decision is not simply how many homes can be built. It’s how ownership, long-term responsibilities, financing, and future sales will be structured after the project is complete.

The practical question is which ownership structure fits the project: separate fee-simple parcels or condominium units with shared common property.

This comparison primarily describes the traditional fee-simple Small Lot model. SHRA can also permit other ownership structures, including common-interest developments, cooperatives, community land trusts, and tenancy-in-common arrangements.

How Ownership Structure Affects Liability and Shared Obligations

The legal distinction matters after the homes are sold as much as it does during development. A condominium structure and a fee-simple Small Lot project allocate common property, maintenance duties, governance, and continuing owner obligations differently. Those differences can affect legal documentation, financing, and insurance planning.

California’s Right to Repair Act, codified in Civil Code Title 7, establishes construction-performance standards and prelitigation procedures for covered new residential construction intended to be sold as individual dwelling units. The framework is not limited to condominiums, so fee-simple Small Lot ownership does not by itself eliminate construction-defect exposure. What changes is how common property, maintenance duties, governance, insurance, and continuing owner obligations are structured.

Ownership structure may still affect insurance planning and legal documentation, but actual differences in insurance cost or exposure must be evaluated for the specific development rather than assumed from the small lot or condominium label.

Fee-Simple Ownership and Buyer Considerations

In the traditional fee-simple model, the practical difference is that the dwelling is associated with an individually owned parcel rather than being organized solely as a condominium unit within a common-interest development.

That structure changes how parcel boundaries, financing, maintenance responsibilities, and future transfers are documented. Some purchasers may value a fee-simple parcel structure, while others may find a condominium ownership model equally suitable depending on the location, project design, maintenance structure, and intended use. The ownership model itself doesn’t determine whether one development is universally better than the other, but it does change how rights and responsibilities are organized.

How Shared Areas Are Managed

Fee-simple ownership doesn’t eliminate shared responsibilities. Even where individual homes occupy separate parcels, certain project elements may still serve multiple owners and require ongoing coordination after construction is complete.

Traditional Small Lot developments commonly use recorded maintenance agreements, reciprocal easements, CC&Rs, or similar documents to assign responsibility for shared driveways, pedestrian access, utilities, landscaping, trash areas, and other common infrastructure. A condominium-style HOA may not be part of the structure, but the shared obligations still need to be documented.

The exact arrangement depends on the subdivision layout and recorded project documents, but the practical result is straightforward: individual parcel ownership can still come with enforceable responsibilities for maintaining shared infrastructure.

Where can you build? Zoning and Site Eligibility

The zoning label is the first screen, not the final answer. A parcel that appears eligible in the City’s Zone Information and Map Access System (ZIMAS) may still prove unsuitable once the applicable legal pathway, lot dimensions, existing improvements, access, utilities, fire requirements, easements, topography, and subdivision standards are evaluated together. Confirm the property’s zoning and planning designations first, then test how many homes the site can realistically support.

Traditional Small Lot Zoning and the Separate SHRA Pathway

Traditional Small Lot and SHRA projects begin with different eligibility rules. The traditional Los Angeles Small Lot framework generally applies in RD, R3, R4, R5, RAS, and qualifying P and C zones. It does not create additional density; the number of homes remains limited by the underlying zoning and applicable subdivision and design standards.

SHRA is a separate state-law pathway for qualifying developments of up to 10 lots and 10 homes. It may apply to certain qualifying vacant sites in single-family zones, but not every vacant R1 parcel is eligible. Site size, existing permanent structures, prior SB 9 or SHRA subdivision history, fire-hazard conditions, environmental constraints, protected housing, and other statutory exclusions must still be reviewed.

Lot Area, Width, and Buildable-Site Constraints

Under the traditional Los Angeles Small Lot Ordinance, each newly created small lot generally must contain at least 600 square feet and measure at least 18 feet wide. SHRA follows a different dimensional framework: current City implementation materials identify a 600-square-foot minimum for newly created parcels in multifamily zones and a 1,200-square-foot minimum for qualifying vacant sites in single-family zones. For qualifying SHRA projects, the City cannot simply carry over the traditional Small Lot Ordinance’s 18-foot minimum-width rule.

Meeting these minimums does not determine final site yield. Building footprints, entries, emergency access, utility corridors, drainage, setbacks, easements, and construction access must still fit within the proposed subdivision. Narrow frontage, irregular geometry, hillside conditions, or existing easements can reduce the number of workable lots.

Before relying on a lot-count estimate, confirm:

• Legal pathway: Whether the property is being evaluated under traditional Small Lot, SHRA, SB 9, or another subdivision process.
• Dimensional fit: Whether the proposed lots, building footprints, setbacks, and access configuration work together.
• Operational fit: Whether utilities, fire access, drainage, easements, and construction staging can be accommodated.

These issues should be tested during early pre-construction planning before a conceptual lot count is treated as reliable.

Small Lot Subdivisions vs. SB 9 Urban Lot Splits

Traditional Small Lot, SHRA, and SB 9 Urban Lot Splits serve different properties and development objectives. Traditional Small Lot applies primarily to eligible multifamily and commercial parcels and can create multiple fee-simple residential lots. SB 9 applies to qualifying single-family parcels and allows an eligible lot to be divided into two. SHRA is a separate ministerial pathway for qualifying developments of up to 10 lots and 10 corresponding homes.

The appropriate option depends on zoning, existing housing, tenant protections, demolition restrictions, parcel geometry, environmental conditions, access, utilities, and statutory eligibility. A site-specific review is therefore more reliable than selecting a pathway based on zoning alone.

Architectural and Site Design Requirements

Once the legal pathway is identified, architectural and site planning determine whether the proposed homes can function within the property’s access, safety, infrastructure, and design constraints.

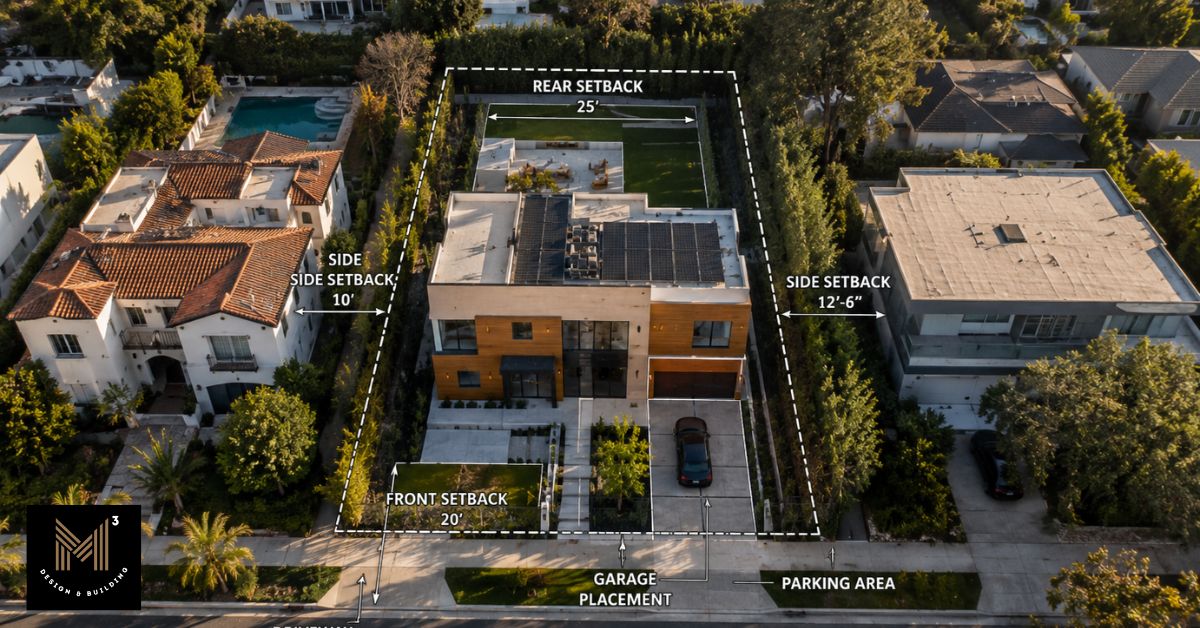

Perimeter Setbacks vs. Internal Building Spacing

Under the traditional Small Lot pathway, perimeter setbacks are generally evaluated under the underlying zone, applicable overlays, subdivision standards, and the project’s exterior boundaries.

Reduced-yard or zero-lot-line conditions may apply along internal parcel lines, but building placement must still address openings, fire resistance, drainage, privacy, entries, and construction access.

The 2018 Small Lot Design Standards also impose condition-specific requirements. For example, at least eight feet must separate the face of a primary entryway from the adjacent wall of a neighboring

Small Lot home, measured along the pedestrian path serving that entrance. This is not a universal eight-foot separation requirement between all buildings.

SHRA follows a different framework. Current implementation generally limits side and rear setbacks from the original parcel boundaries to four feet and restricts certain local separation requirements, although California Building Code, access, utility, and infrastructure requirements remain applicable.

Design Question	Traditional Small Lot Pathway	Qualifying SHRA Project
Outside Perimeter Setbacks	Based on the Underlying Zone, Map Standards, and Applicable Overlays	New Structures Are Generally Subject to a Maximum Four-Foot Side and Rear Setback from the Original Parcel Boundaries; Existing-Structure Exceptions Apply
Internal Lot Lines/Building Separation	Reduced-Yard Conditions May Apply, But Design, Building, and Fire Requirements Remain	Local Zoning Separation Requirements Are Preempted; California Building Code Requirements Remain
Applicable Design Standards	Current City Small Lot Design Standards Apply Through Administrative Clearance	Objective Local Standards May Apply Only Where Consistent with SHRA
Main Feasibility Risk	Map Layout May Conflict with Entries, Openings, Drainage, Privacy, or Access	State-Law Limits on Local Standards Do Not Remove Building-Code, Access, or Infrastructure Constraints

Parking, Shared Driveways, and Emergency Access

Parking affects more than stall count. Driveway and garage placement can determine whether front units retain visible entrances, interior homes have safe pedestrian access, and enough land remains for workable building footprints.

Traditional Small Lot projects follow the parking requirements applicable to the underlying zone and project configuration. SHRA generally limits local parking requirements to one space per unit and prohibits minimum parking requirements in certain qualifying transit- and car-share-adjacent locations.

These limits do not remove the need to coordinate vehicle movement, pedestrian access, emergency circulation, utilities, trash service, drainage, and building footprints. The 2018 standards also require a pedestrian pathway at least three feet wide from the public right-of-way to primary entries and specified common areas.

A workable access plan has to resolve:

• Vehicle movement and turning: Cars must enter, maneuver, and reach required parking without blocking other site functions.
• Pedestrian routes to every primary entry: Interior homes need a clear, identifiable path connected to the public right-of-way.
• Emergency and service access: Building placement must accommodate the access geometry required by the relevant reviewing agencies.
• Utility, trash, and drainage conflicts: Shared routes cannot be planned independently of infrastructure and service areas.

On constrained parcels, access, utility corridors, pedestrian paths, and emergency circulation can materially reduce the theoretical lot count.

Current Small Lot Design Standards and the Proposed Missing Middle LA Updates

As of July 2026, Los Angeles has existing Small Lot Design Standards adopted in 2018, while the Missing Middle LA amendments remain a separate code-update process. A first draft was released in June 2026 for public review, so those proposed amendments should not be treated as final or universally effective requirements.

The current 2018 standards regulate more than appearance. They address dwelling orientation, visible primary entrances, façade articulation, building-massing variation, pedestrian pathways, landscaping, and common open space where applicable. They also shape the relationship between garages, shared driveways, interior homes, and the public street.

Those rules can materially change site yield. The 2018 standards group Small Lot homes into clusters of no more than six homes or 180 linear feet, whichever is less, with a minimum six-foot building gap between clusters. They also require façade shifts or breaks at specified intervals and additional design variation where a subdivision places more than six homes within a row.

An interior home must connect to a clearly defined pedestrian route. Homes along the public right-of-way must present an identifiable entrance and building orientation toward the street, while interior homes must orient their entries toward a connected pedestrian pathway. The site plan must address how garages, curb cuts, and driveways affect the public frontage rather than allowing vehicular elements to define the entire street-facing edge. Compliance is reviewed through the applicable Administrative Clearance process for traditional Small Lot projects, making the standards enforceable project requirements rather than optional design preferences.

Missing Middle LA is a separate local code-update initiative addressing the Small Lot Ordinance, related design and map standards, and implementation of recent state housing laws. City Planning released its first draft amendments in June 2026. As of July 2026, those amendments remain proposed and should not be treated as operative until the formal adoption process is complete and applicable effective dates are confirmed.

Framework	Status as of July 2026	What It Means for a Current Project
2018 Small Lot Design Standards	Adopted and Applicable to Qualifying Traditional Small Lot Projects	Applicable Traditional Small Lot Projects Must Demonstrate Compliance Through Administrative Clearance under the Existing City Framework
SHRA State-Law Standards	Effective State Law	Qualifying Projects Receive Separate Statutory Protections and Limits on Local Standards
Missing Middle LA Amendments	Draft/Proposed	Projects Should not Rely on Proposed Incentives or Standards until Final Adoption and Operative Dates Are Confirmed

The Step-by-Step Small Lot Subdivision Process

Small Lot projects often encounter delays when feasibility, subdivision mapping, architectural design, engineering, and permitting stop moving together. These workstreams must remain coordinated from the initial site study through construction.

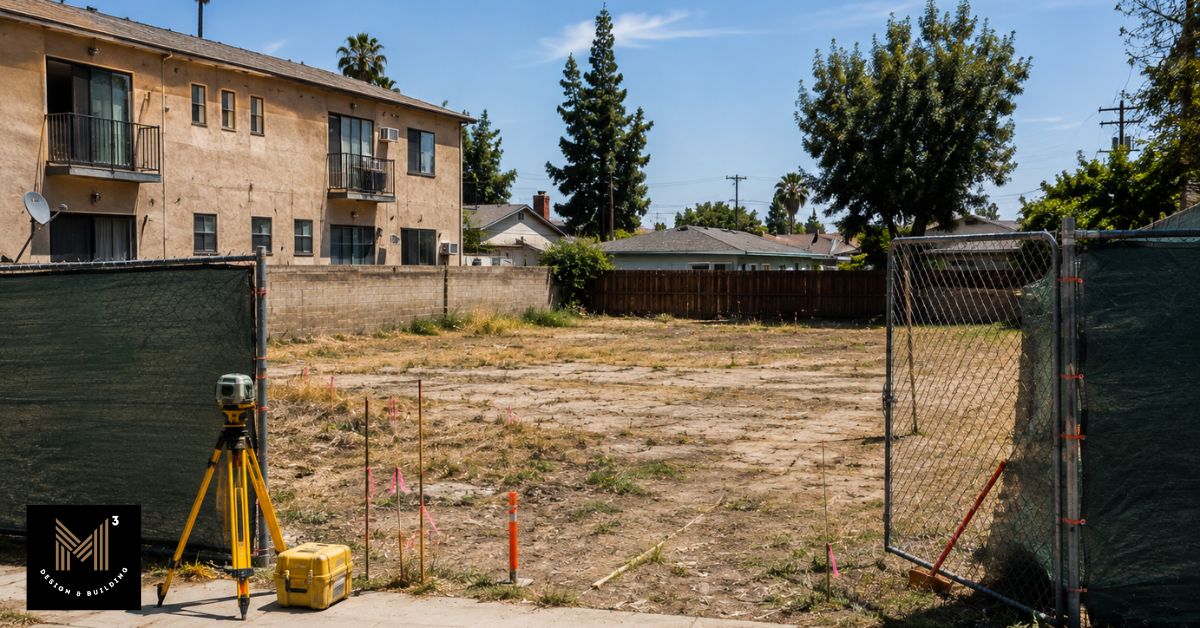

Phase 1: Test the Site Before Committing to a Unit Count

Before purchasing a parcel or committing to a unit count, confirm the likely legal pathway and test the site through zoning review and preliminary massing. The analysis should address existing structures, occupancy, lot dimensions, topography, title constraints, access, utilities, drainage, grading, easements, and demolition restrictions.

A preliminary massing study then tests approximate building footprints, access, pedestrian paths, parking where applicable, setbacks, and utility corridors. Surveys, site visits, public records, and consultant input may be required because ZIMAS and desktop records cannot confirm every physical or title condition.

Phase 2: Prepare the Correct Subdivision Map

The proposed parcel count generally determines the map type, while the legal pathway determines the review process. Traditional projects commonly use a Parcel Map for four or fewer parcels and a Tentative Tract Map for five or more. A Vesting Tentative Tract Map requests vesting treatment where the applicable requirements are met; it is not required for every Small Lot project.

Qualifying SHRA developments may proceed through a parcel map or tentative and final maps under the ministerial state-law framework. A licensed land surveyor or qualified civil engineer typically prepares the subdivision map, which must remain coordinated with architecture, access, utilities, grading, and easements.

Map/Pathway	Typical Use	Key Review Distinction
Parcel Map	Generally four or fewer parcels	Generally used for four or fewer parcels under applicable City and state requirements
Tentative Tract Map	Generally five or more parcels	Tentative approval establishes conditions before preparation and recordation of the final tract map
Vesting Tentative Tract Map	Tract map requesting vesting treatment	Optional filing where vesting requirements are met
Qualifying SHRA map	Parcel map or tentative/final map	Ministerial review if statutory criteria are satisfied

Phase 3: Coordinate Architectural Design and Planning Review

The subdivision map and architectural plans must describe the same workable project. Parcel lines, building footprints, entries, driveways, utilities, drainage, easements, and emergency access should remain coordinated as review progresses.

Traditional applications are reviewed by the Advisory Agency under the Subdivision Map Act and City regulations, with hearings, notices, environmental review, and appeals varying by project. Qualifying SHRA applications use ministerial review but must still satisfy complete-application requirements, objective standards, map requirements, building regulations, and agency clearances.

Because design revisions can affect parcel lines and subdivision conditions can affect architecture, both workstreams should advance together.

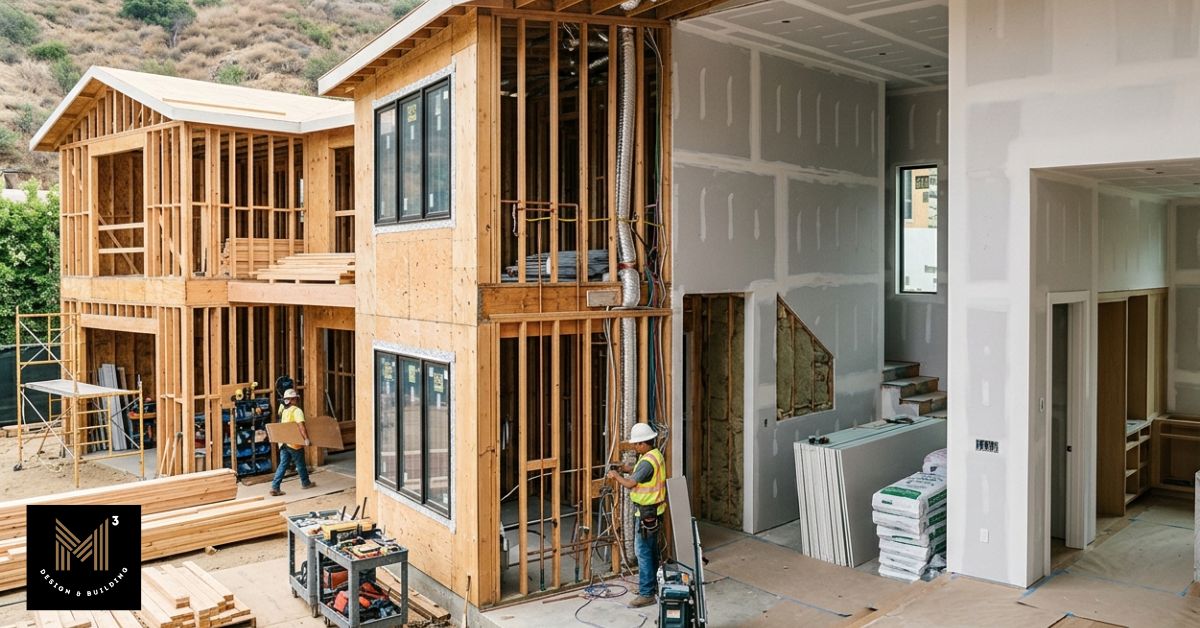

Phase 4: Complete Conditions, Permits, Final Mapping, and Construction

Tentative-map or parcel-map approval is an important milestone, but it does not itself create separately transferable legal parcels. The final Parcel Map or Tract Map must still satisfy the applicable conditions, receive the required approvals, and be recorded before the subdivision is completed.

Building-permit timing depends on the applicable pathway. Los Angeles allows certain early-start permits for eligible traditional Small Lot and qualifying SHRA projects after tentative-map or parcel-map approval, subject to applicable requirements and a recorded agreement acknowledging that a certificate of occupancy will not be issued until the final map is recorded. Any work performed before final recordation must remain consistent with the approved project and account for revisions required through final-map processing.

Ready-to-Issue status generally means the permit application has completed the applicable plan-check corrections and clearances and is ready for issuance once the remaining administrative requirements, documents, and fees are satisfied. It is not itself an issued permit.

➤ Clear, permit, record, and build: Complete the required conditions, map processing, permit issuance, and recordation milestones in the sequence applicable to the project. Where an early-start permit is available, confirm its requirements before beginning construction.

The Impact of the Starter Home Revitalization Act on Small Lot Development

The Starter Home Revitalization Act establishes a ministerial approval pathway for qualifying subdivisions of up to 10 parcels and 10 corresponding residential units. The current framework reflects SB 684, SB 1123, and later amendments effective through July 2025.

For qualifying Los Angeles projects, City Planning reviews the application against statutory eligibility requirements and applicable objective standards rather than discretionary preferences. This generally removes discretionary subdivision hearings, appeals, and CEQA review, subject to statutory exceptions such as applicable Coastal Zone procedures.

Ministerial review does not guarantee approval. The applicant must still submit a complete application and demonstrate compliance with site eligibility, map requirements, objective standards, agency clearances, and permitted health-and-safety findings. Utilities, drainage, grading, fire access, building-code compliance, final-map recordation, and building permits also remain necessary.

The Permit Streamlining Act’s 30-day completeness review applies, and the City generally must approve or deny a completed qualifying application within 60 days. That period covers the subdivision decision only—not feasibility, final mapping, building permits, infrastructure work, or construction.

SHRA Changes	SHRA Does Not Eliminate
Ministerial Review Based on Statutory and Objective Criteria	Site and Project Eligibility Requirements
No Discretionary Subdivision Hearing, Appeal, or CEQA Review for Qualifying Applications, Subject to the Coastal Zone Hearing Exception	Complete Map Documents and Agency Clearances
Defined Statutory Review Period for a Complete Application	Final-Map Recordation, Building Permits, and Construction Review
A Qualifying Subdivision of 10 or Fewer Parcels with 10 or Fewer Corresponding Residential Units	Access, Utilities, Grading, Fire, Building-Code, and Constructability Constraints

For developers, SHRA can provide a more predictable review path, but it does not make an unsuitable parcel physically or financially viable.

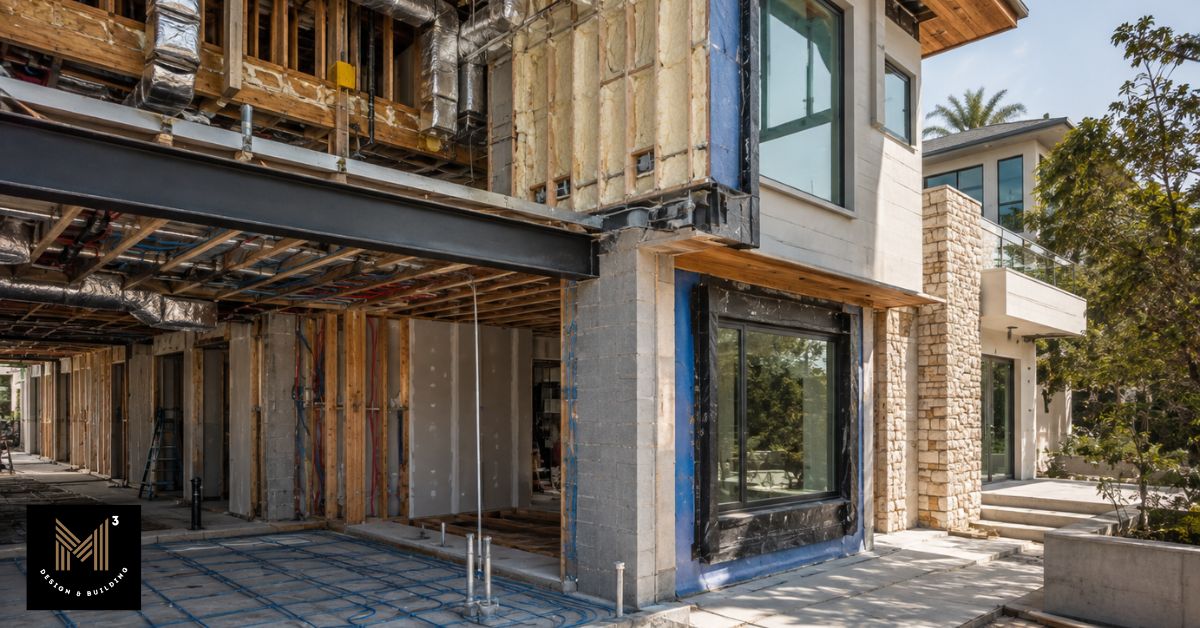

The Financial Case for Investors and Property Owners

Before demolishing an existing property or committing to a redevelopment project, the practical question is straightforward: will the completed development justify the cost, time, and complexity required to deliver it?

Maximizing Yield per Square Foot

The financial question is not whether a parcel can theoretically support more homes, but whether the completed development is likely to justify acquisition, entitlement, financing, holding, infrastructure, and construction costs.

An older duplex on an eligible RD parcel may appear to support several new homes, but the achievable yield must be tested against demolition or relocation obligations, parcel geometry, utilities, grading, retaining work, access, mapping, permitting, and construction staging. Each additional unit should be evaluated against the cost and complexity it introduces.

In some cases, retaining an existing structure, reducing the unit count, or selecting another ownership or development pathway may produce a stronger result than maximizing theoretical density. This analysis should occur before acquisition or demolition, while the owner can still reconsider the project strategy.

Demand for Missing Middle Housing

Small Lot development can provide compact urban homes positioned between conventional detached houses and condominium projects. Buyer demand may be strongest where the development offers a practical combination of location, individual ownership, contemporary design, and manageable maintenance responsibilities.

Market fit remains neighborhood-specific. Unit size, parking, privacy, outdoor space, ownership obligations, comparable sales, competing supply, financing assumptions, and the intended sale, rental, or hold strategy should be tested during feasibility—not after the design is fixed.

Strong demand cannot compensate for an inefficient site plan or excessive construction cost. Market analysis and physical feasibility therefore need to be evaluated together.

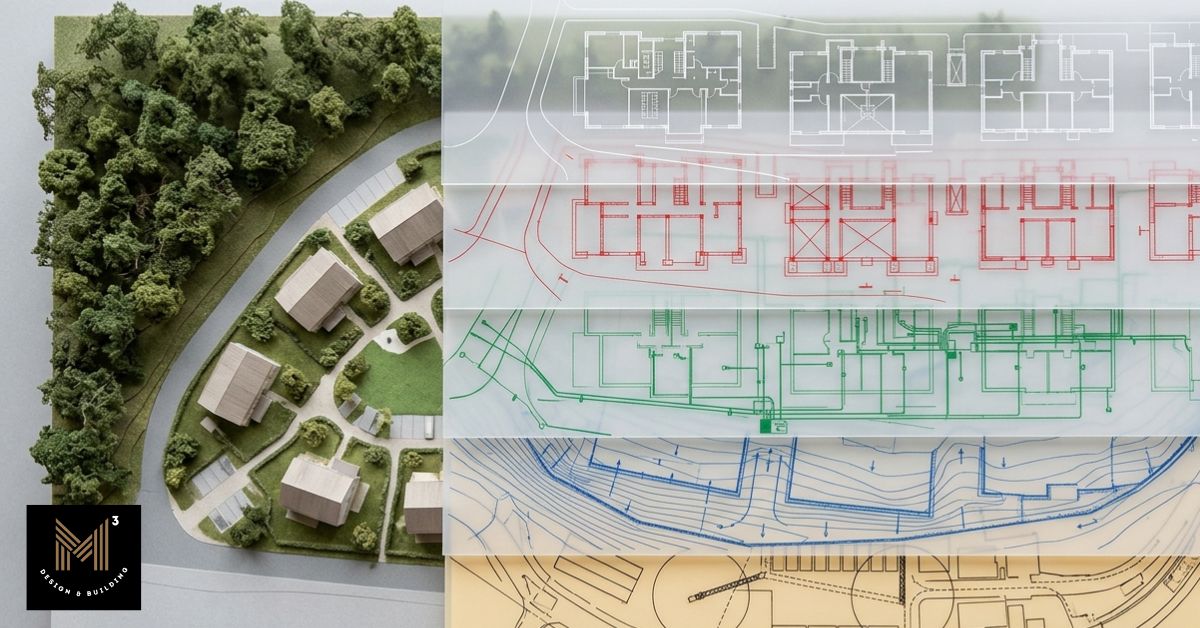

Why an Integrated Design-Build Approach Matters for Small Lot Projects



Small Lot projects require subdivision planning, architecture, engineering, permitting, utility coordination, and construction strategy to remain aligned as the project develops. When these workstreams advance separately, a change in one discipline can force revisions across several others.

For example, a revised sewer route may require an easement that affects a building footprint, while grading or retaining-wall changes may affect foundations, access, and construction cost. A conceptual four-home layout may therefore change once transformer placement, utility trenches, driveway geometry, emergency access, and site grading are evaluated at the required scale.

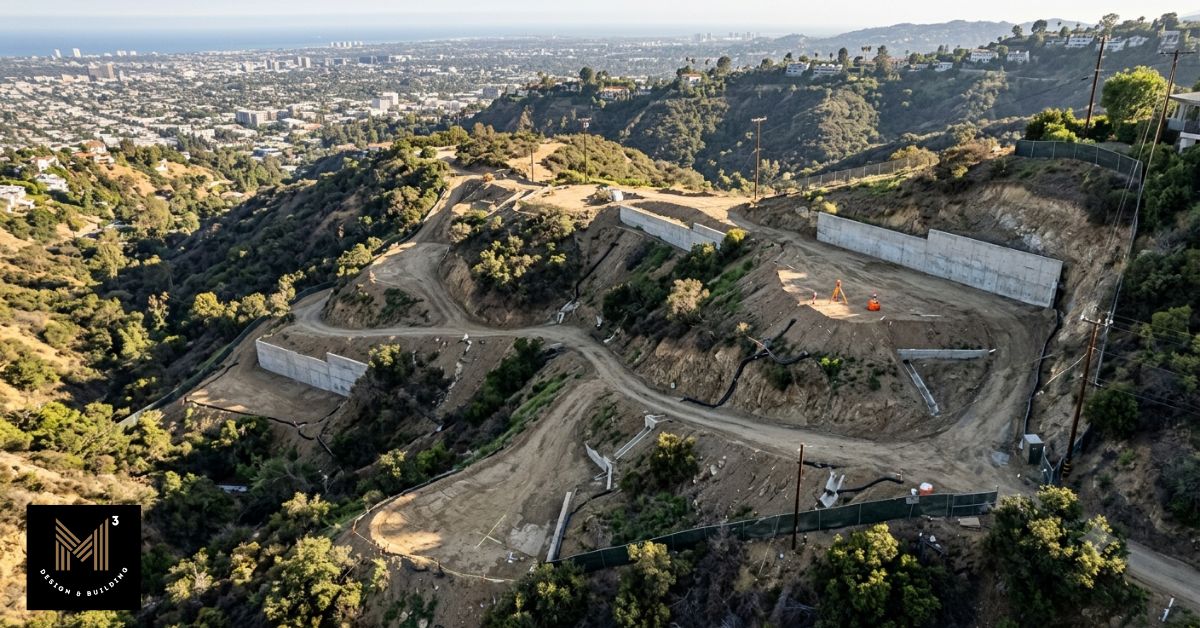

Early constructability review gives owners more room to adjust the layout, unit count, infrastructure strategy, or grading approach before mapping and permit documents become difficult and expensive to revise. It cannot eliminate every unknown condition or agency requirement, but it can identify major conflicts while practical alternatives remain available.

How M-Cubed Connects Design and Construction Decisions

M-Cubed Design & Building uses an owner-led design-build process that connects feasibility, subdivision planning, architecture, engineering coordination, permitting, construction management, and field constraints from the beginning.

Proposed layouts can therefore be tested against access, utility routing, grading, retaining work, construction staging, and budget assumptions before they are treated as buildable. This does not eliminate every future revision or cost change, but it gives owners earlier visibility into decisions affecting unit yield, scope, schedule, and investment viability.

If you are evaluating a Los Angeles property for a Small Lot or other multi-unit development, begin with a feasibility and pre-construction discussion. Bring the property address, any available survey or site plan, current occupancy information, preliminary unit goals, and known title, access, utility, or grading concerns.

A Note on This Information

Land-use, subdivision, permitting, ownership, and development requirements vary by property, legal pathway, project scope, and current agency interpretation. This article provides general educational information and is not legal, planning, engineering, tax, or investment advice. Confirm the requirements applicable to a specific property with the appropriate professionals and reviewing agencies.
